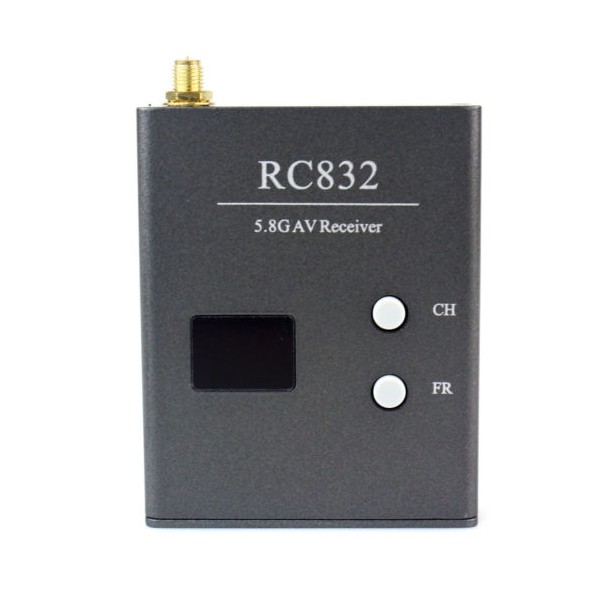

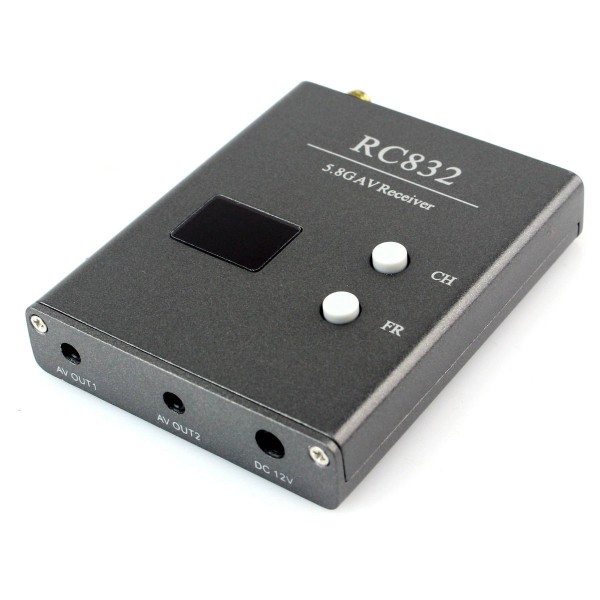

Home Boscam Boscam FPV 5.8G 600mW 5.8Ghz 32 Channel Radio Receiver RC832 DJI Phantom 5KM

Boscam Boscam FPV 5.8G 600mW 5.8Ghz 32 Channel Radio Receiver RC832 DJI Phantom 5KM


  free shipping to worldwide

More details

Availability: In stock

10 items in stock

$36.90

30 other products in the same category:

Features:

  • 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
  • Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
  • Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
  • Power off memory: Replay the very last frequency band and channel

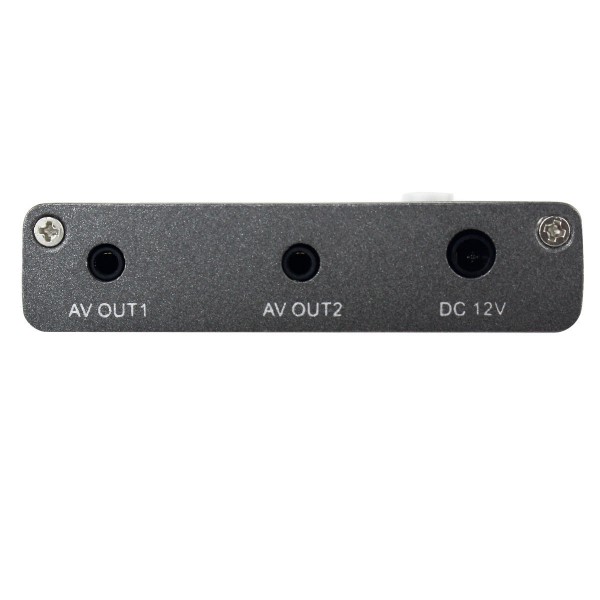

  • Independent video and audio signal outputs

Specification :


Video format supported

NTSC/PAL

Antenna connection

RP-SMA, jack(module side) see connector type diagram

Power input

12V

Working current

200mA max

Antenna impedance

50 ohm

Antenna gain

2db

Video impedance

75

Video format

NTSC/PAL auto

Dimension

80x65x15mm

Weight

85g

Frequency range

FR1 5865,5845,5825,5805,5785,5765,5745,5725

FR2 5733,5752,5771,5790,5809,5828,5847,5866

FR3 5707,5685,5665,5645,5885,5905,5925,5945

FR4 5740,5760,5780,5800,5820,5840,5860,5880

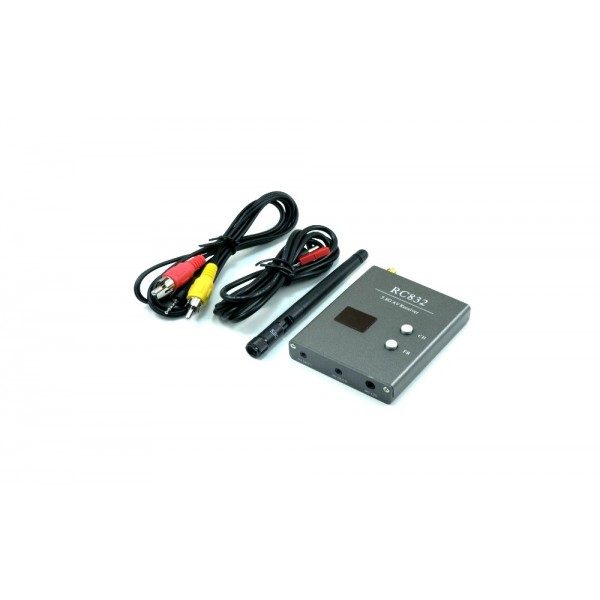

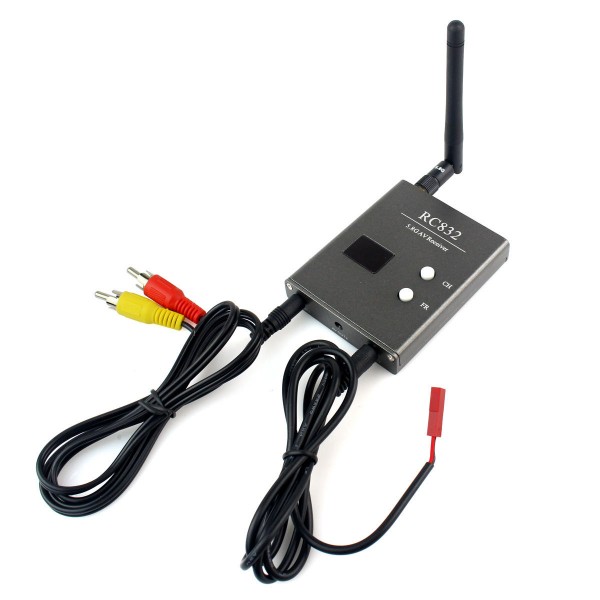

Package Included:

  • 1 x Receiver
  • 1 x Antenna
  • 2 x Cable
