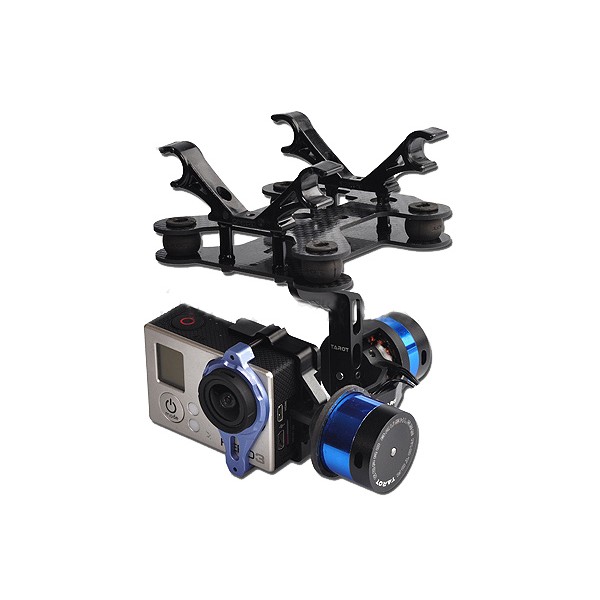

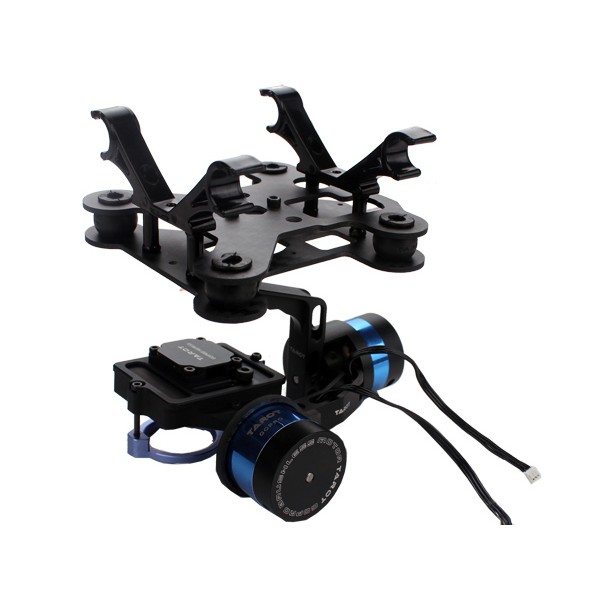

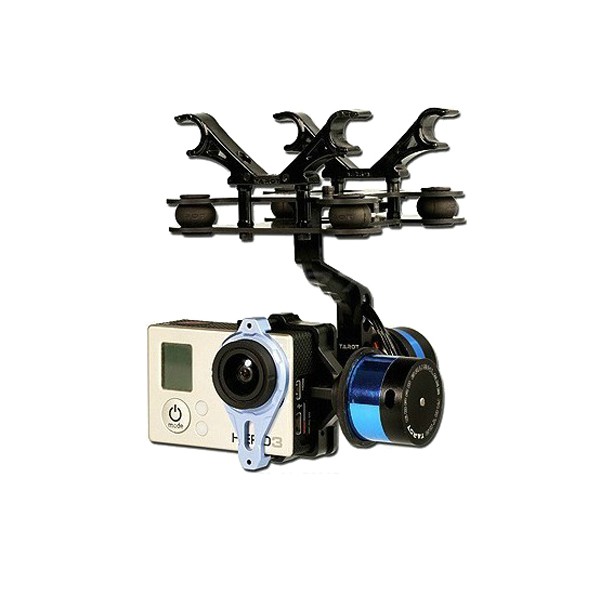

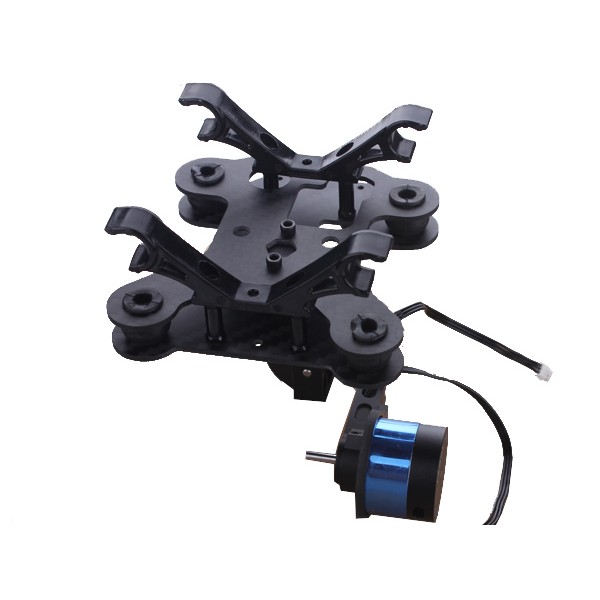

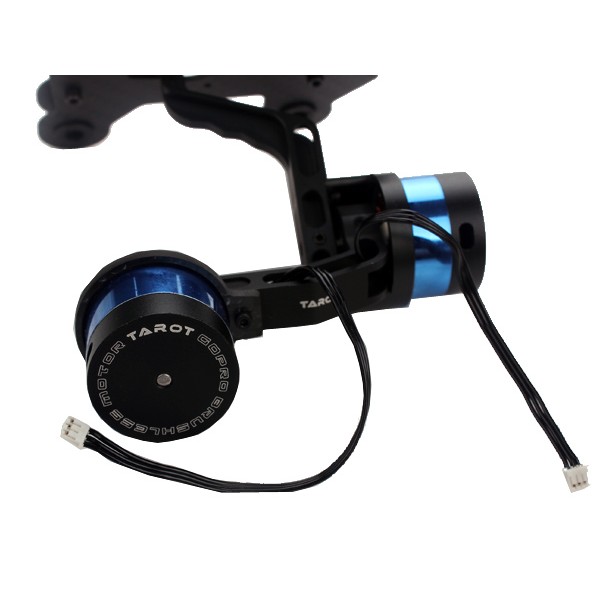

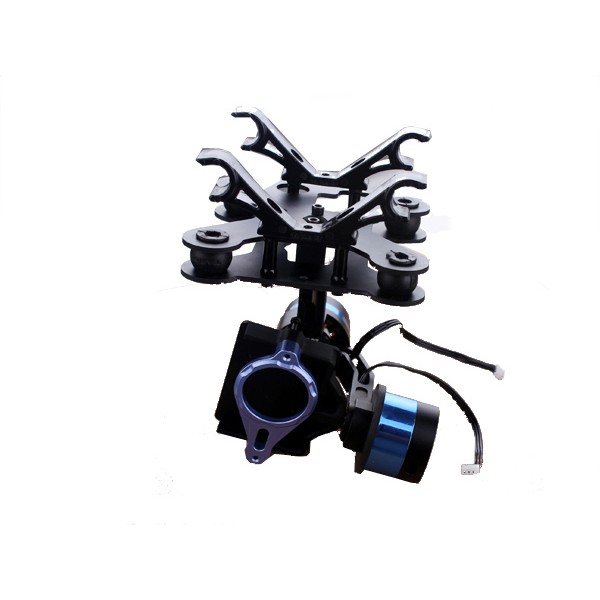

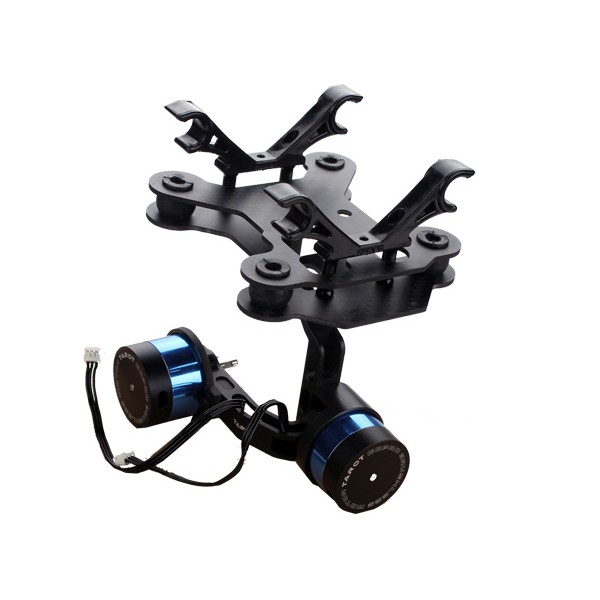

Tarot T-2D TL68A00 Gimbal with Gyro Camera Mount RC FPV PTZ for Gopro 3 DJI


  free shipping to worldwide

More details

Availability: In stock

10 items in stock

$159.90

16 other products in the same category:

Welcome: You are bidding : Tarot T-2D 2 Axis Camera Brushless Gimbal TL68A00 withGyro for Gopro Hero 3 (The Gopro Hero 3 Camera is NOT included)


Specification:

  • 1. Support GOPRO Hero3 video auxiliary output
  • 2. Support the supply voltage polarity protection and voltage compensation
  • 3. Support the motor drive end short-circuit protection
  • 4. Support for custom initial pitch angle
  • 5. Support sensitivity parameter adjustment and software 3D pose show
  • 6. The Support rocker rate mode and position mode
  • 7. Support Receiver: conventional receiver. S-BUS receiver. DSM2/DSMJ/DSMX receiver
  • 8. Support for remote devices: PPM/PCM/2.4G
  • 9. The working voltage: DC 7.4V ~ 14.8V (Recommended 12V. three lithium battery)
  • 10. Working current: 200mA-500mA (power supply voltage and the motor related)
  • 11. The working environment temperature: -15 ℃ ~ 65 ℃
  • 12. The processor: Dual 32-bit high-speed ARM core processor
  • 13. The sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three
  • 14. The maximum angular rate: 2000 ° / sec
  • 15. The maximum acceleration: 16g
  • 16. The control frequency: 2000Hz
  • 17. The motor drive frequency: 20KHz (no noise smoothing driven)
  • 18. The control accuracy: 0.1 °
  • 19. The control angle range: -45 ° ~ 45 ° (roll). -135 ° ~ 90 ° (tilt)
  • 20. Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
  • 21. For shooting equipment: GOPRO Hero
  • (The Gopro Hero 3 Camera is NOT included)


Package Included:

  • GOPRO brushless gimbal × 1


Tarot T-2D gimbal is designed for the Gopro Hero3, which is widely usedinfilm,television productions, advertising aerial photography, etc.
Using 6061T6 aluminum alloy full CNC precision machining and brushless motor driving,its overall framework is designed with the idea of compact, easy installation, high precision, lightweight, high stability and many other characteristics.
Evenif the aircraft is in high-speed flight, it can still stabilize and control the Goprocamera precisely with the highest stability, so pictures or videos output can reach the best quality.
GOPRO brushless pan rack assembly TL68A00
