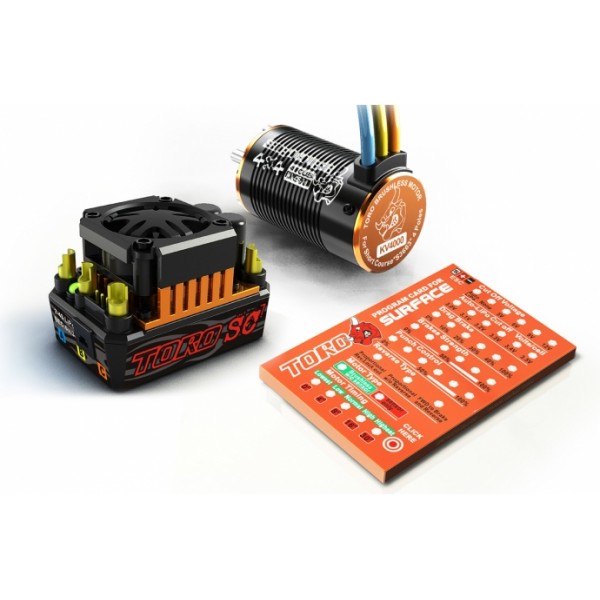

SKYRC Toro 120A Brushless ESC Combo with Toro Short Course Truck 4000kv 4P BL Motor & Program Card

1 other products in the same category:

SKYRC Toro 120A Brushless ESC + Toro Short Course Truck 4000kv 4P BL Motor + Program Card

Specification (Brushless ESC):

Controls, TORO SC : Rev/Brk/Brk or Fwd/Fwd
Motor Limits, TORO SC : Input Power (Cells)
Brushless KV ≤ 6000 :Up to 2S(8.4Volt),ideal for 1/10 Short Course
Brushless KV ≤ 4000 : Up to 3S(12.6Volt),ideal for 1/10 buggies and Short Course
Brushless KV ≤ 3000 : Up to 4S(16.8Volt),ideal for 1/8 buggies
On Resistance, Brushless : 0.0004 Ohms per phase at 25℃（77°F）Trans.Temp
Continuous/Burst Current : 120Amp/760Amp
Switching BEC : 6V 5Amp
Status LED : 1 with 3 color (Red, Green & Orange)
Thermal Overload Protection :Yes
Dimensions(L*W*H) :55*37.6*38.4mm(2.17*1.47*1.51in)
Weight(Without wires) : 87g(3.07oz)

Specification (Brushless Motor):

item Name	Toro 4000KV/4P BL Motor for 1/10 Short Course Truck
Sensored /Sensorless	sensorless	No loading	3.4A
Max power	2000W	Max current	155A
KV value	4000KV	Resistance (Ω)	0.0064Ω
Poles	4P	Max voltage	21V
Size	36*62.5mm	Weight	220g
Extend shaft diameter	5mm	Length of extend shaft	15.5mm
